JOINT PROFILES
780 A
ALUMINIUM JOINT PROFILE

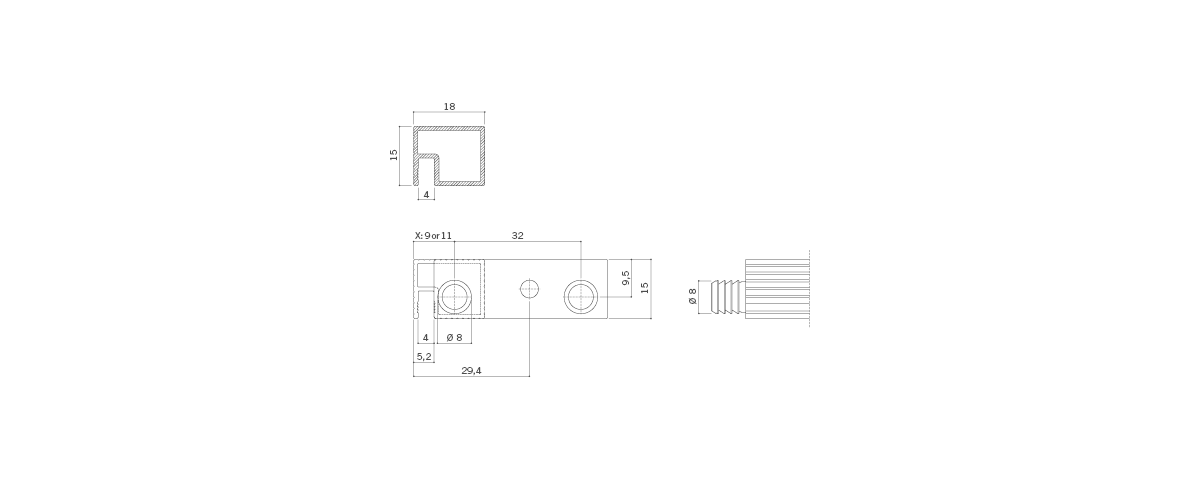

Technical drawing
Specifications
| CODE | Lenght L (mm) |
Pieces per box (pcs) |
Weight per box (kg) |
|---|---|---|---|
| 780015 A | 150 | 50 | 1,5 |
| 780030 A | 300 | 50 | 3 |
| 780040 A | 400 | 50 | 4 |
| 780045 A | 450 | 50 | 5 |
| 780050 A | 500 | 50 | 5,5 |
| 780060 A | 600 | 50 | 7 |
| 780080 A | 800 | 50 | 9 |
| 780090 A | 900 | 50 | 10 |
| 780100 A | 1.000 | 50 | 11 |
| 780105 A | 1.050 | 50 | 11 |
| 780120 A | 1.200 | 50 | 12,5 |
| 780150 A | 1.500 | 50 | 15 |
Mounting precautions

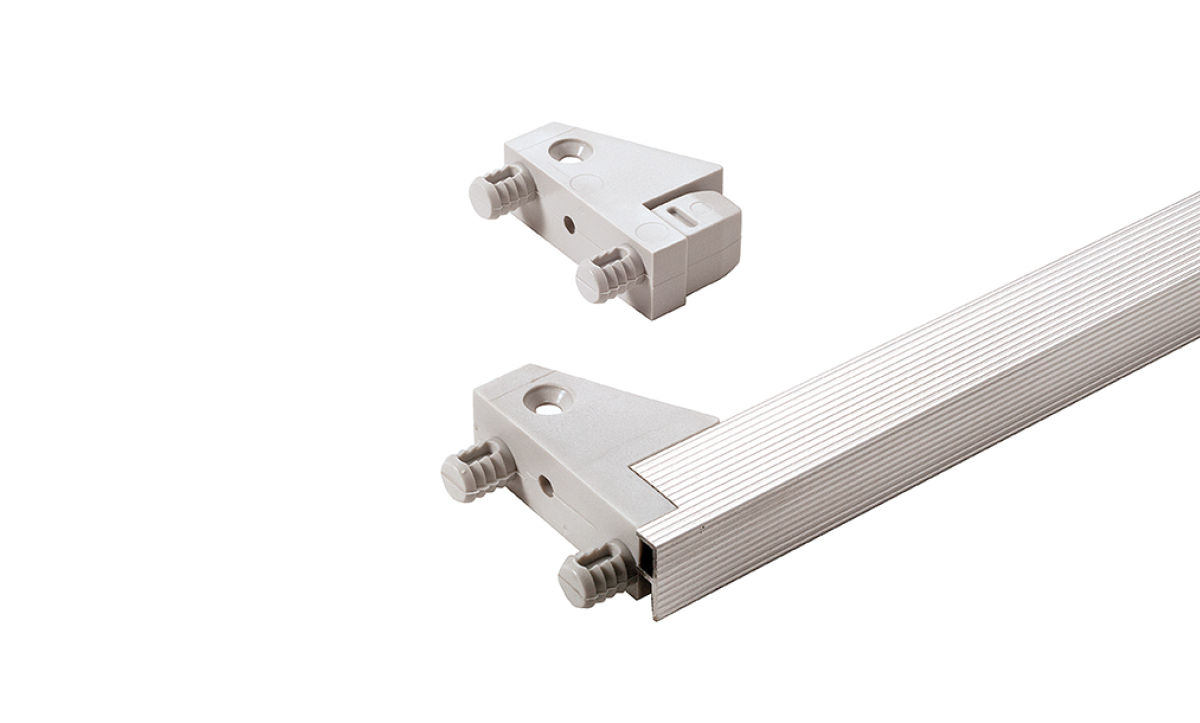

● Kit: 1 aluminium profile + 2 end caps.
● Pin’s diameter: 8 mm.
● Distance X: 9 mm or 11 mm.
● Pin’s diameter: 8 mm.
● Distance X: 9 mm or 11 mm.
